Alerting

🔎Find it: FusionReactor > Alerting

FusionReactor Cloud Alerting allows you to create automated checks on the values of metric data gathered by a FusionReactor agent, and generate alerts when user-made conditions are met.

!Screenshot

The alerting system is comprised of Checks and Subscriptions:

  • Checks are the conditions that are processed by the alerting engine.
  • Subscriptions can be added to a check to notify via other services when an alert is generated.

The alerting area can be found by selecting Alerting in the navigation bar, while alerting service configurations can be found by clicking Configurations.

Note

It is necessary to set-up alerting services before you can start using them to make Subscriptions.

Checks

🔎Find it: FusionReactor > Alerting > Checks

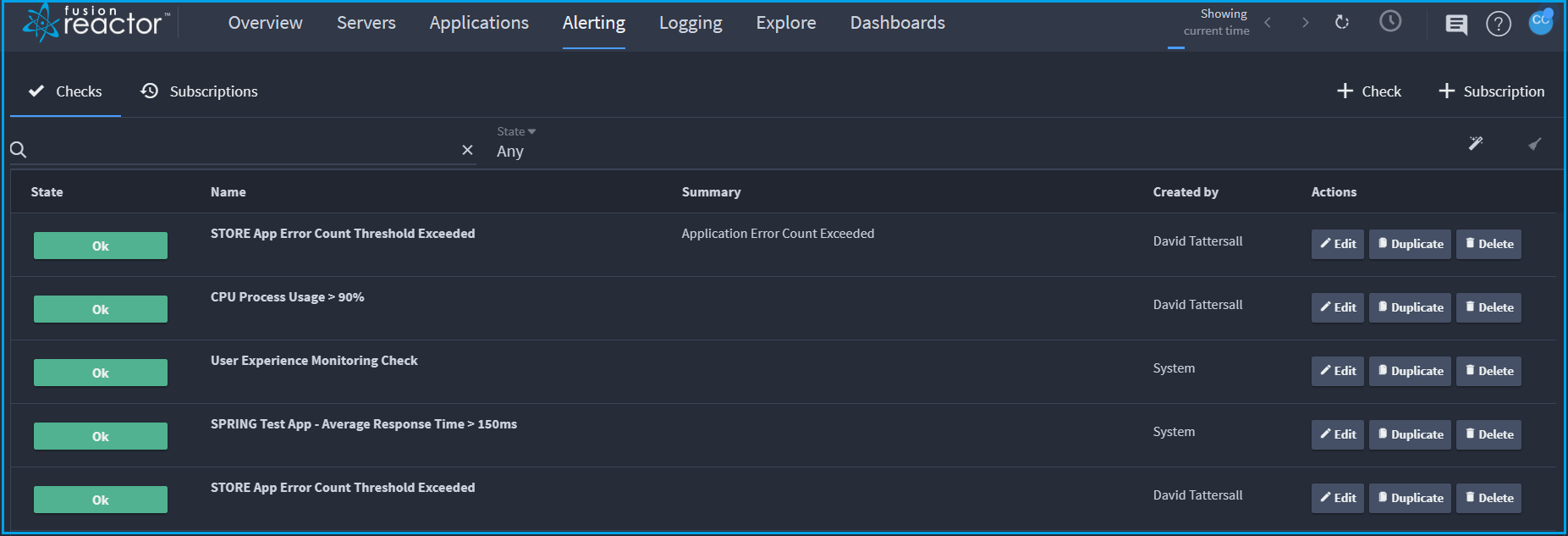

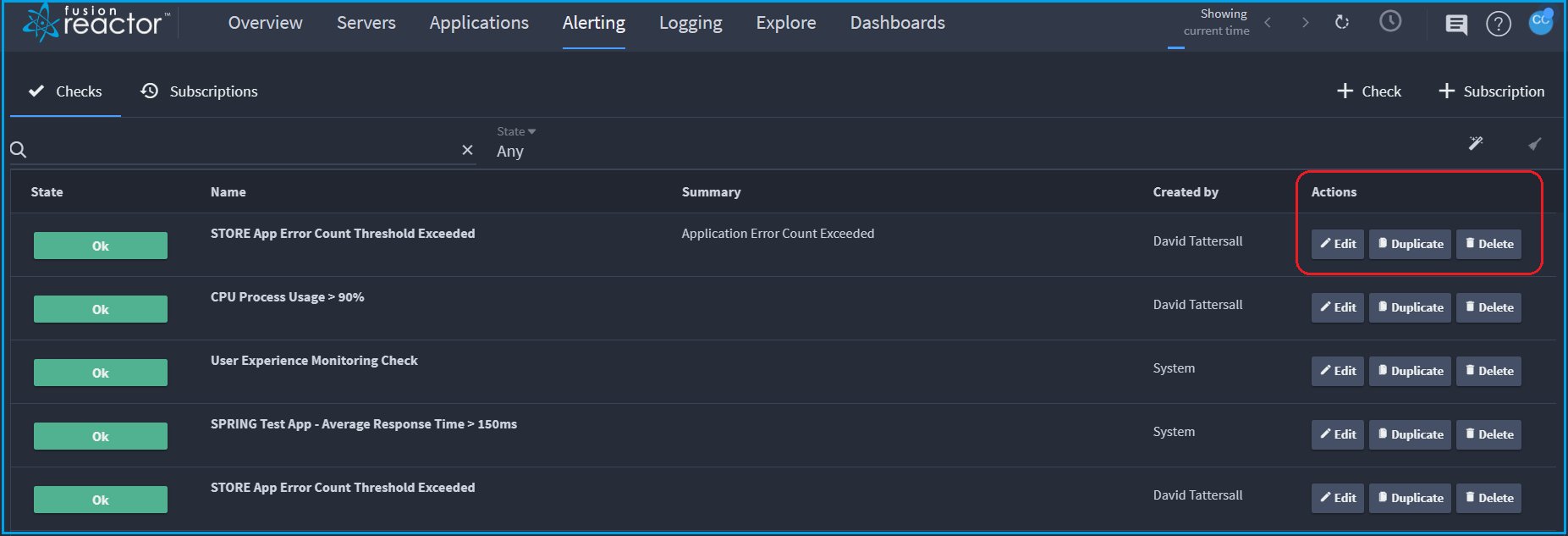

In the Checks screen, you can perform the following actions:

  • View a check.

  • Edit, Duplicate or Delete a check.

!Screenshot

Alert status

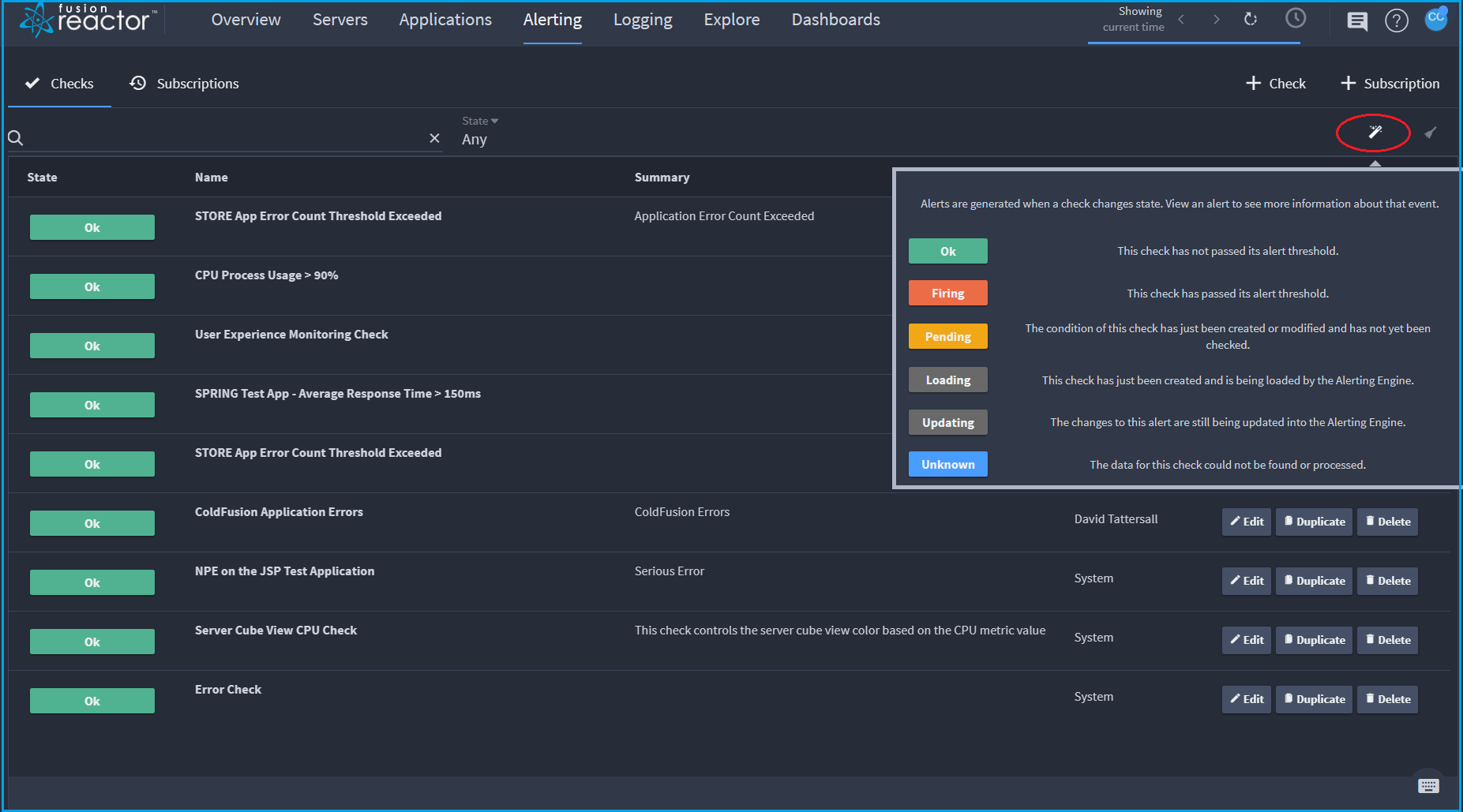

Hovering over the first icon at the right of the screen displays information about the alert.

!Screenshot

  1. Ok - This alert has not passed its alert threshold.

  2. Firing - This check has passed its alert threshold

  3. Pending - The condition of this check has been created or modified and has not yet been checked.

  4. Loading - This check has been created and is being loaded by the alerting engine.

  5. Updating - The changes to this alert are still being updated into the alerting engine.

  6. Unknown - The data for this check could not be found or processed.

Create a check

🔎Find it: FusionReactor > Alerting > Checks > + Check

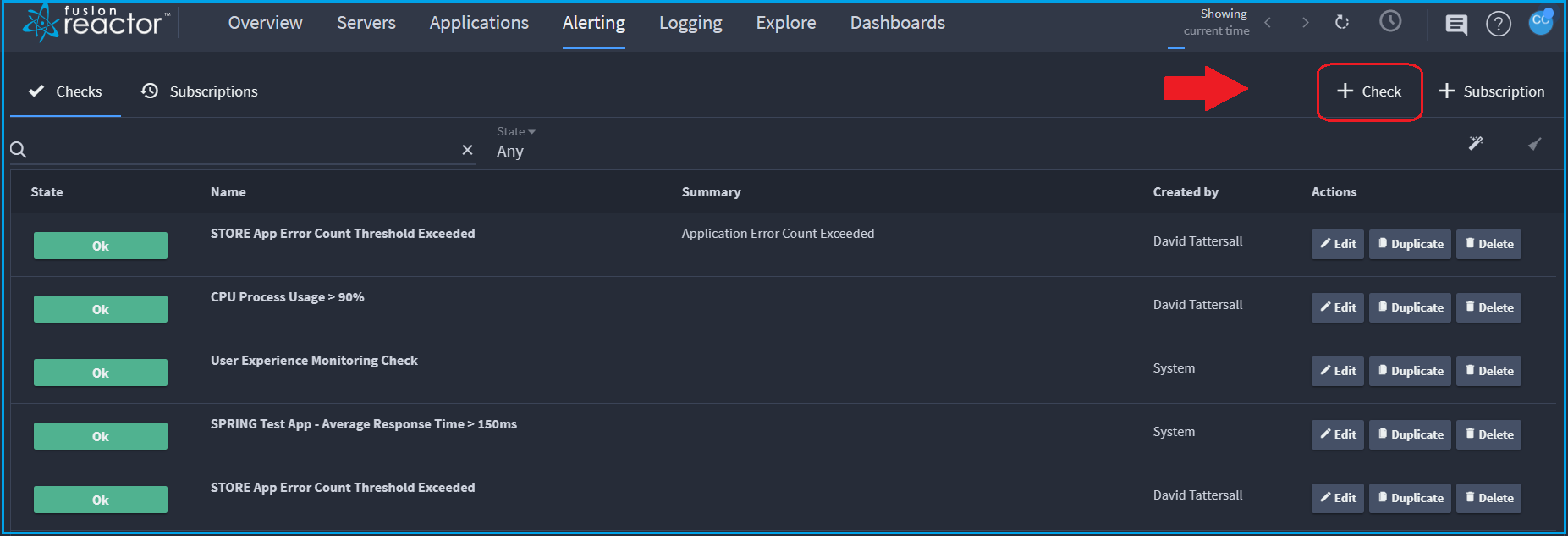

To create a check, select + Check on the top right of page.

!Screenshot

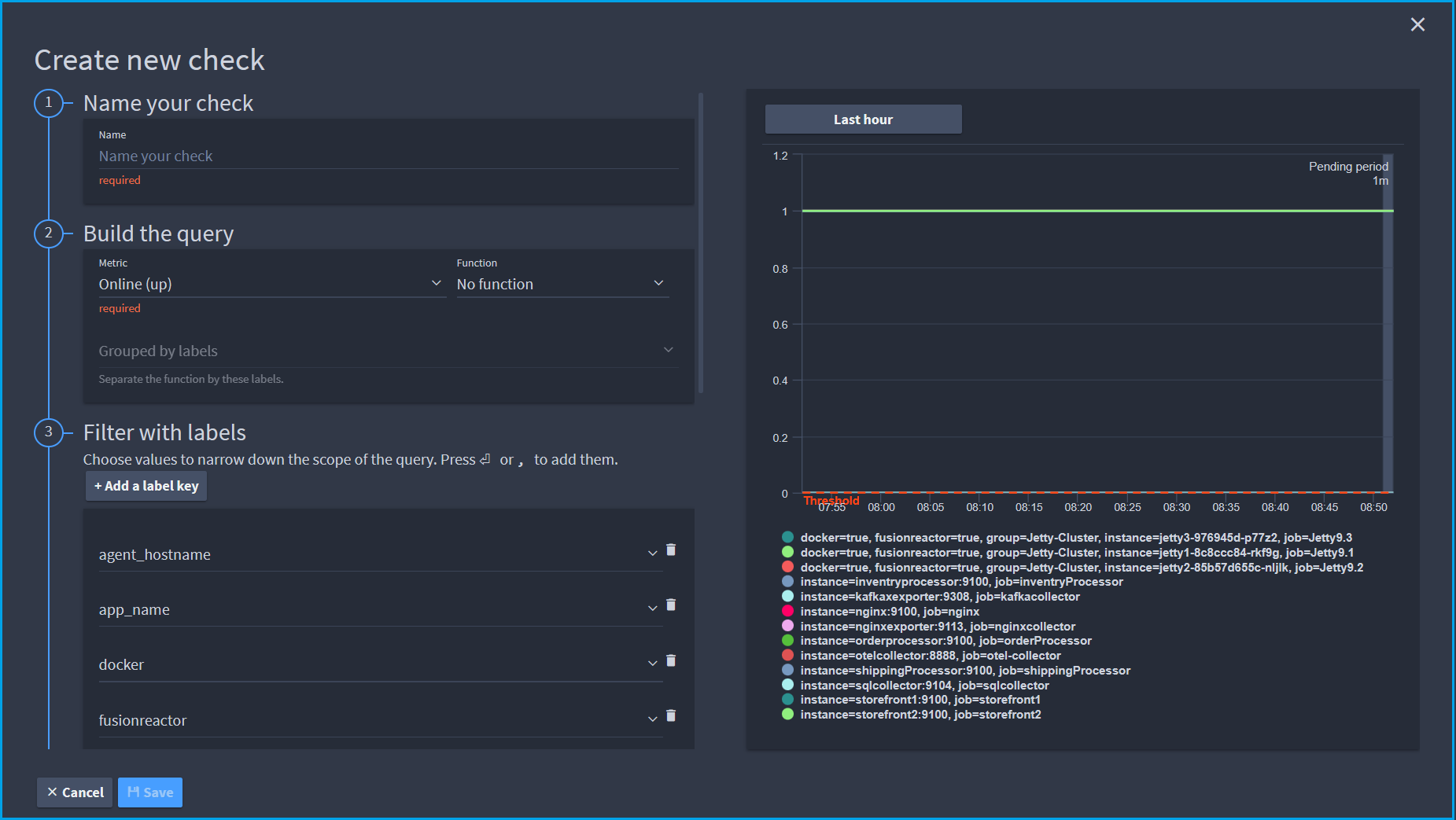

The Create new check screen is displayed.

!Screenshot

Tip

We recommend only creating checks that fire when action to correct a situation is required. If you have too many alerts fire, we tend to find that alerts begin to be ignored. As a result crucial alerts that are important can be missed.

Info

The alerting engine runs every 60 seconds.

There are two ways to set a query:

Builder

Step 1: Name your check

The first step in creating a check is naming it.

Tip

Using a name that describes the situation firing the event is recommended.

Step 2: Set your query

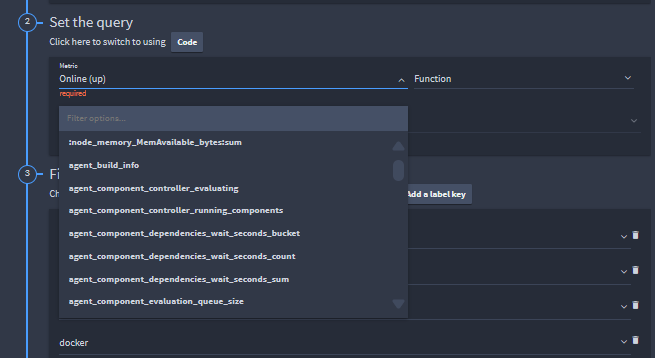

The metrics list contains every metric that has been ingested into your cloud account

!Screenshot

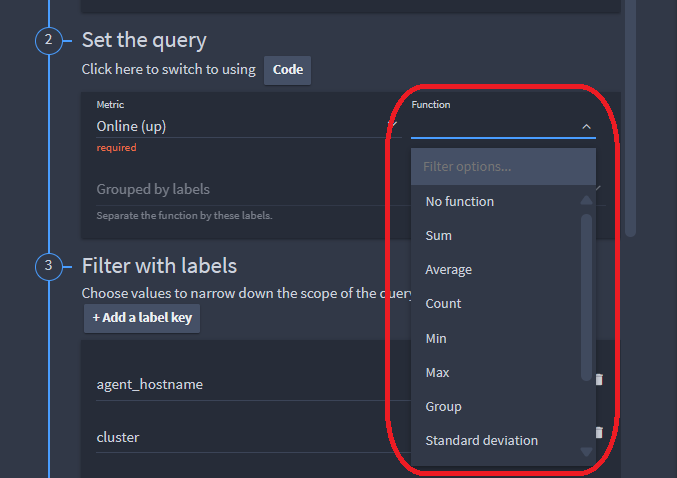

Functions can be applied to your metric if required.

!Screenshot

Functions include:

  • Sum
  • Average
  • Count
  • Min
  • Max
  • Group
  • Standard deviation
  • Unless
  • Absent

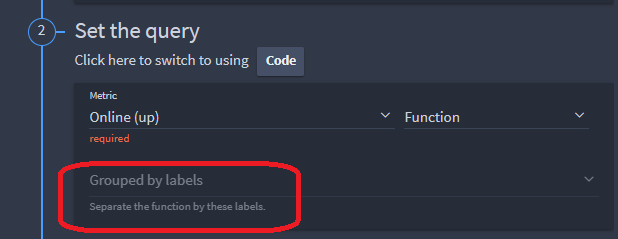

The Grouped by labels dropdown will set which labels the data is grouped by, before a function is run on each group.

!Screenshot

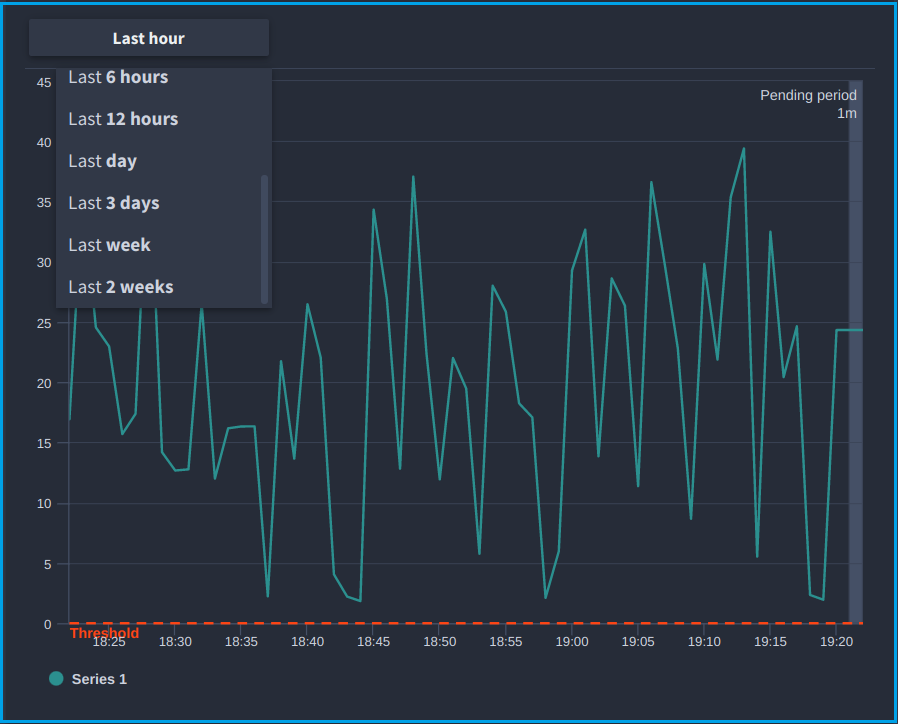

Any changes to your metric selection, function or group will be applied to the graph showing the metric state.

The timeframe of the metric can be adjusted from one hour, up to 2 weeks.

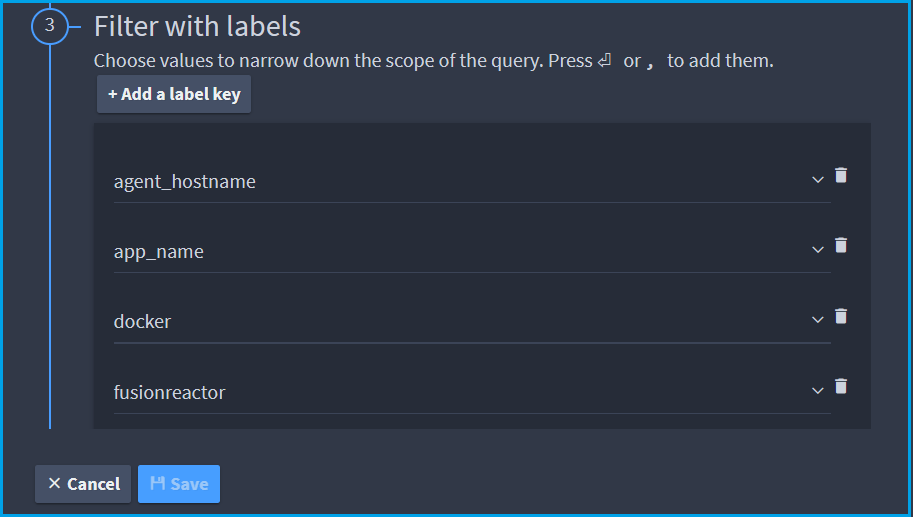

Step 3: Filter with labels

!Screenshot

The alerting UI will display each label associated with your selected metric.

  • Select one or more label values to narrow down the data being monitored by the alert.

  • Add your own key/value pairs with Add a label key.

  • Selected labels will alter the metric graph values appropriately.

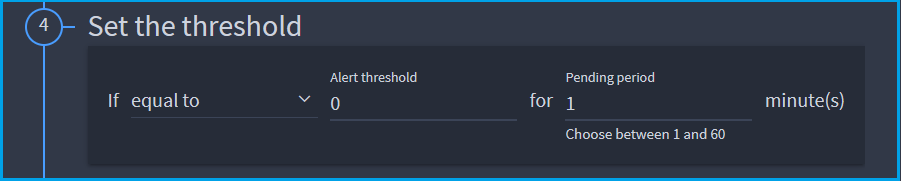

Step 4: Set your thresholds

Using the metric graph for reference, you can set your alert threshold.

Use the selector to specify whether the value needs to be greater than, less than or equal to the threshold.

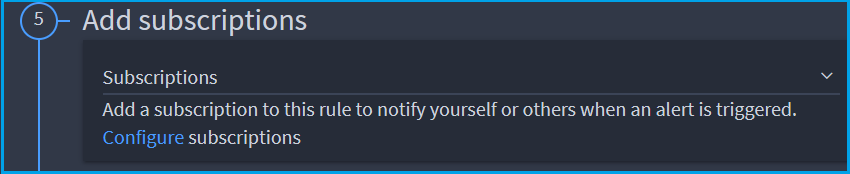

Step 5: Add subscriptions

Specify which of your existing subscriptions you would like your alert to be sent to, or alternatively create a new subscription.

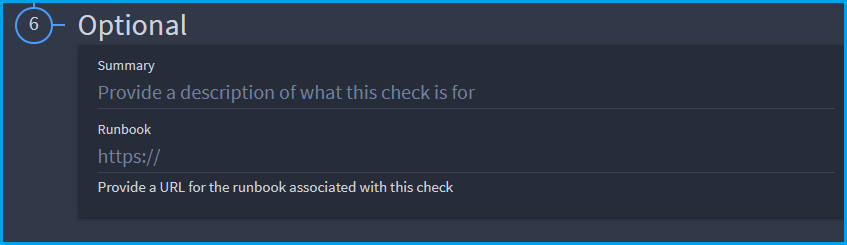

Step 6: Optional configuration

You can set a summary and runbook for your alert notification. These are optional.

  • Summary is a short description of the check, so the receiver knows what the alert is about.
  • Runbook is for a URL. This is usually the location of the resources/instructions for What to do when this alert fires.

The summary and runbook, if specified, will appear in your alert.

Code

Step 1: Name your check

The first step in creating a check is naming it.

Tip

Using a name that describes the situation firing the event is recommended.

Step 2: Set your query

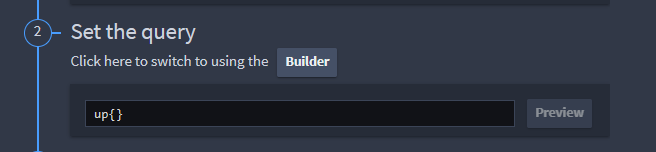

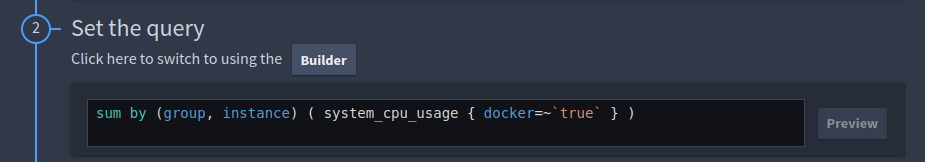

To build your query using PromQL, select the code button.

The following screen is displayed:

Example Query

Step 3: Set your thresholds

Using the metric graph for reference, you can set your alert threshold.

Use the selector to specify whether the value needs to be greater than, less than or equal to the threshold.

Step 4: Add subscriptions

Specify which of your existing subscriptions you would like your alert to be sent to, or alternatively create a new subscription.

Step 5: Optional configuration

You can set a summary and runbook for your alert notification. These are optional.

  • Summary is a short description of the check, so the receiver knows what the alert is about.
  • Runbook is for a URL. This is usually the location of the resources/instructions for What to do when this alert fires.

Example checks

Edit and duplicate checks

Edit - Editing a check will provide you with a form identical to the form for creating one. It will be populated with the existing configuration of the check and when you save it the original check is overwritten.

Duplicate - Duplicate similarly shows the same form with the check's settings already filled in. Selecting Save when duplicating will create a new check instead.

Alert services

🔎Find it: FusionReactor > User Icon > Configuration

Subscriptions require a service they can send their subscribed alerts to. These are set-up in the configuration menu.

!Screenshot

The following alerting services are currently supported:

Configure alerting services

Service configurations can be found under Alert services in the Configuration menu. From there you can configure the services you wish to use when creating subscriptions.

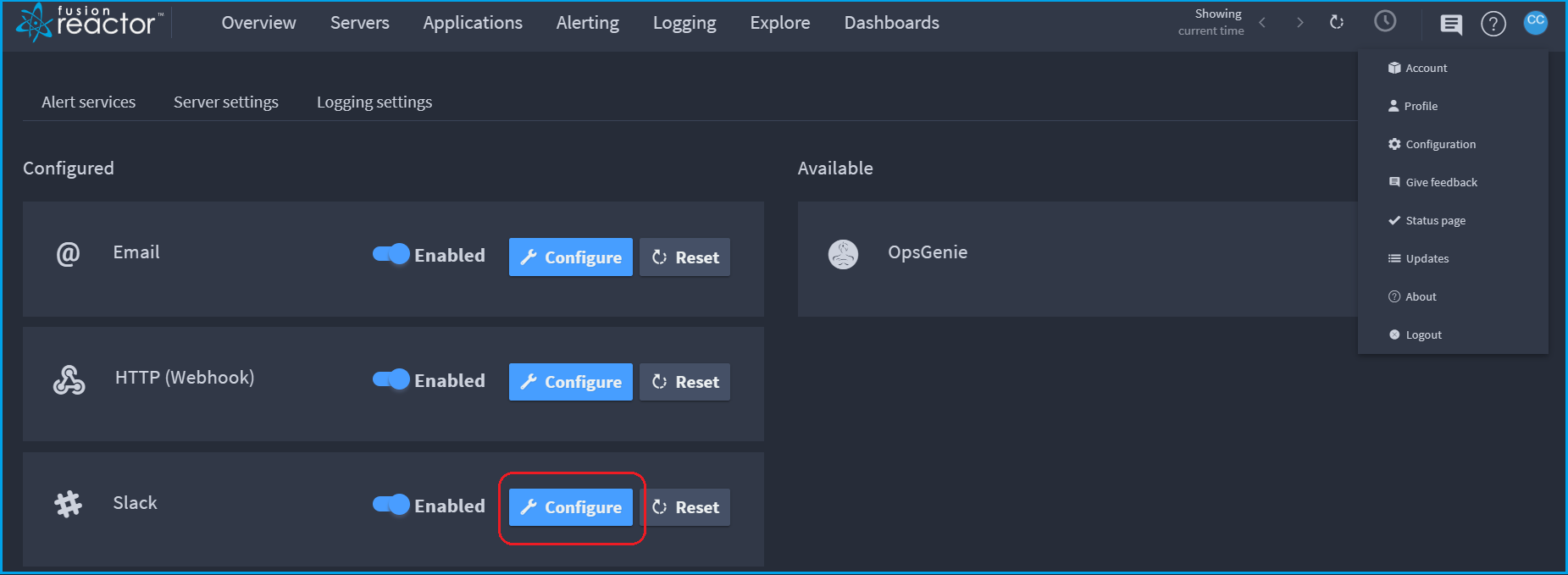

To configure a service simply click the Configure next to that service.

!Screenshot

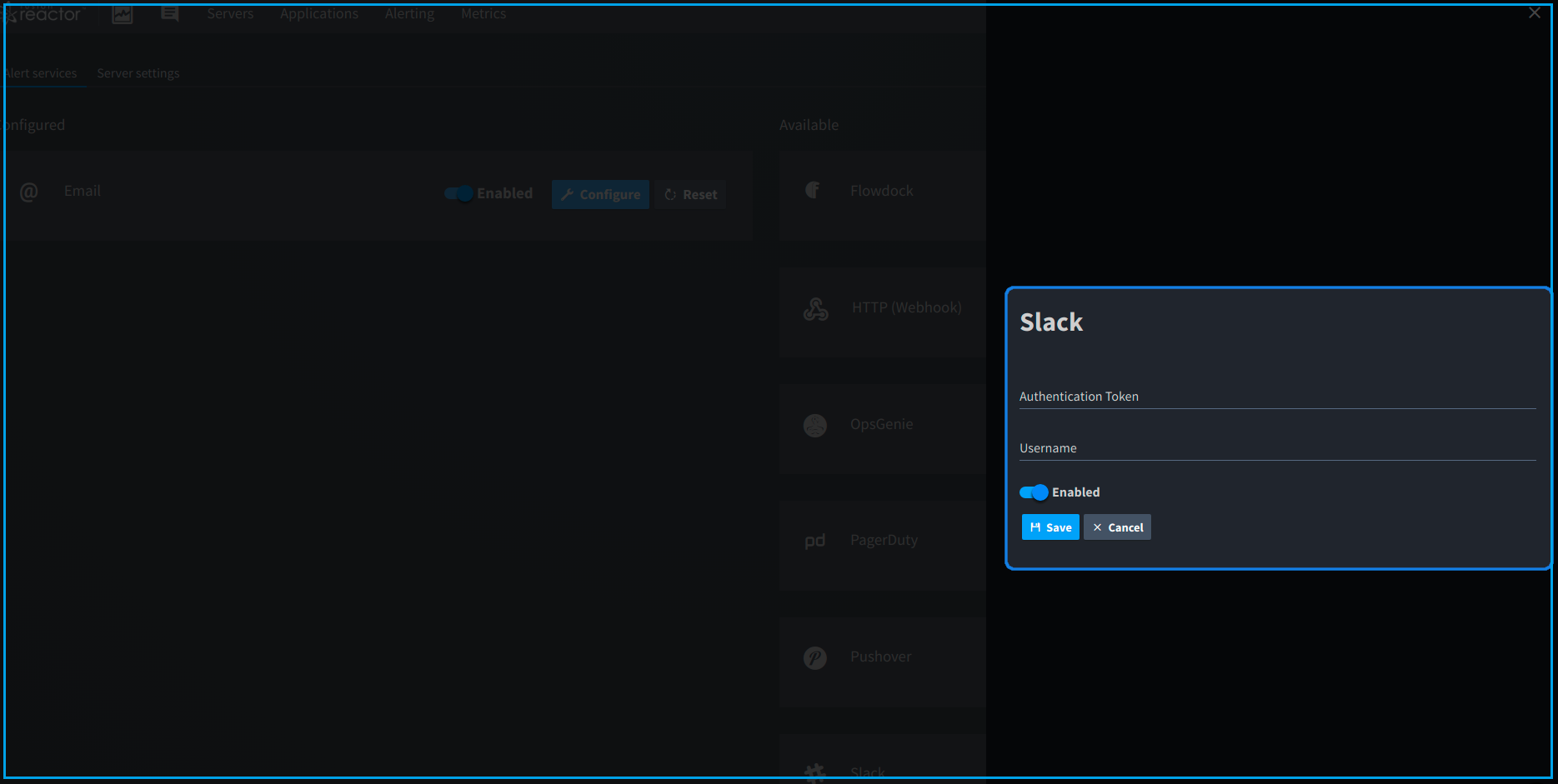

A menu like the one shown below will appear:

!Screenshot

The required information differs for each service, and are explained in more detail below:

Email

  • Simply enable the service.
  • Email addresses are set during subscription creation.

Http (Webhook)

  • Enter Webhook URL in the subscription during creation.

Slack

Learn more

Slack

For the FusionReactor Cloud Slack app:

  • Click the Add to Slack button which will redirect you to the Slack website.

  • If required, sign into Slack, then review the requested permissions and allow the app access to your workspace.

Note

The FusionReactor Cloud app will only have permission to view the name, email domain, and icon for your workspace. It cannot edit anything.

Learn more

Slack api

Note

If you have to request approval from your Slack workspace admin, you will have to repeat these steps. An admin can approve the request from the app management settings for your workspace or through a direct Slack message they will receive from Slackbot.

After granting the app access, you will be redirected back to FusionReactor Cloud and your service will be configured.

Disable alerting services

Clicking the toggle next to the service will switch it between being Enabled or Disabled.

When a service configuration is disabled, the following will happen:

  • Each subscription that is linked to that service will be disabled. You will need to manually re-enable them after re-configuring the service.

Note

You cannot re-enable the subscriptions until the service is enabled.

  • The settings saved on that service will be kept, so no extra set-up is required when re-enabling them.

Reset alerting services

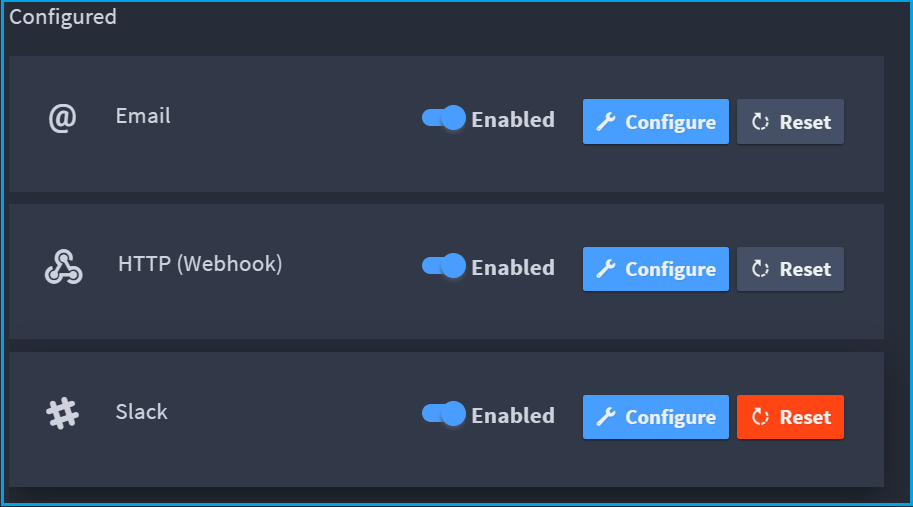

You can reset the configuration for a service by selecting Reset next to that service.

!Screenshot

When a service configuration is reset, the following occurs:

  • Each subscription that is linked to that service will be disabled. You you will need to manually re-enable them after re-configuring the service.

Note

You cannot re-enable the subscriptions until the service is enabled.

  • The settings saved on that service will be deleted, so any API keys and other information will need to be entered again when re-configuring them.

Subscriptions

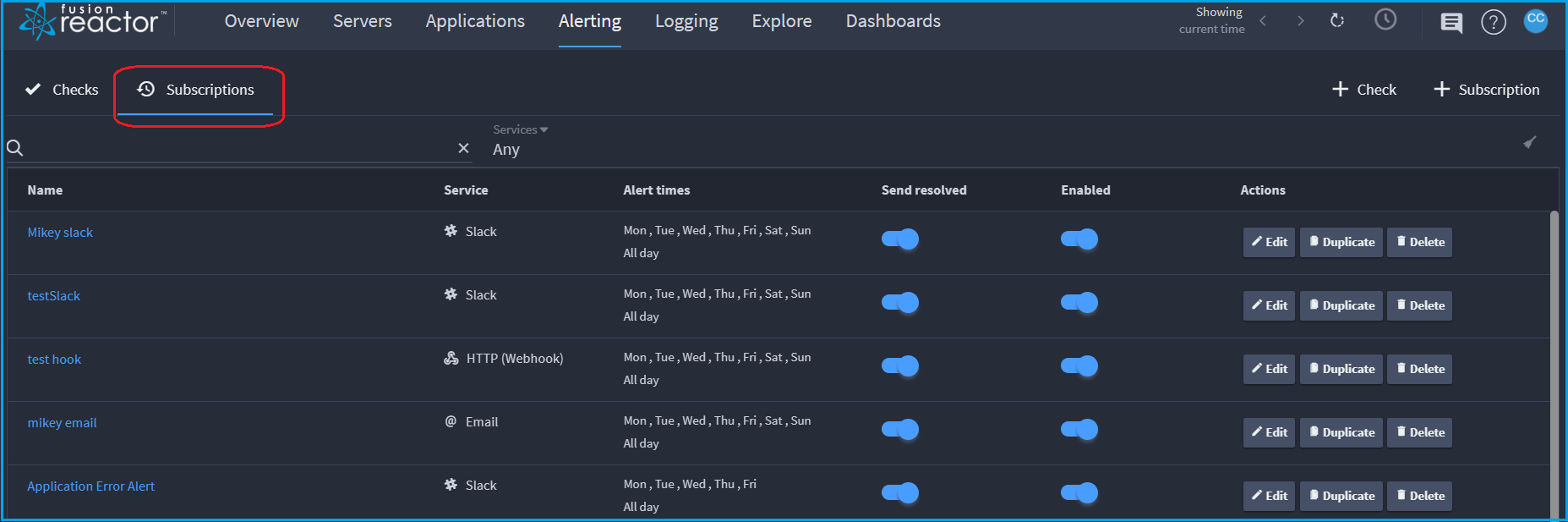

The subscriptions tab lets you manage and test your subscriptions.

!Screenshot

To view a subscription in more detail, select its name on the left-side of the row.

Create subscriptions

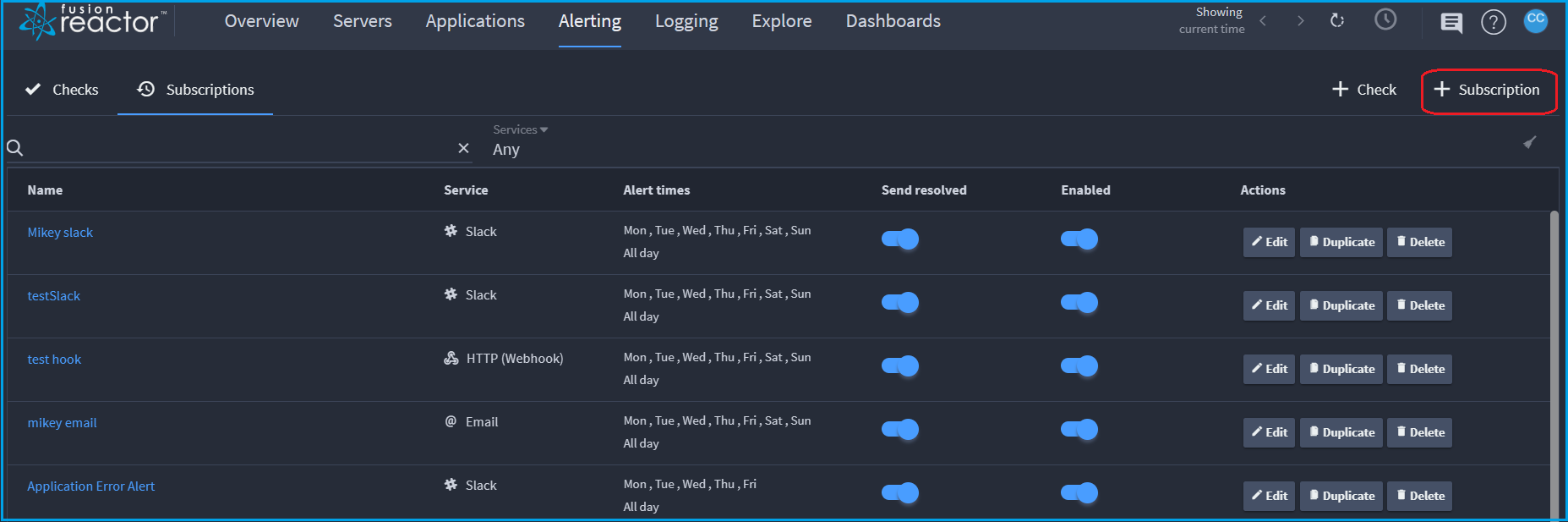

Clicking the subscription button as shown below, will open the form for creating subscriptions.

!Screenshot

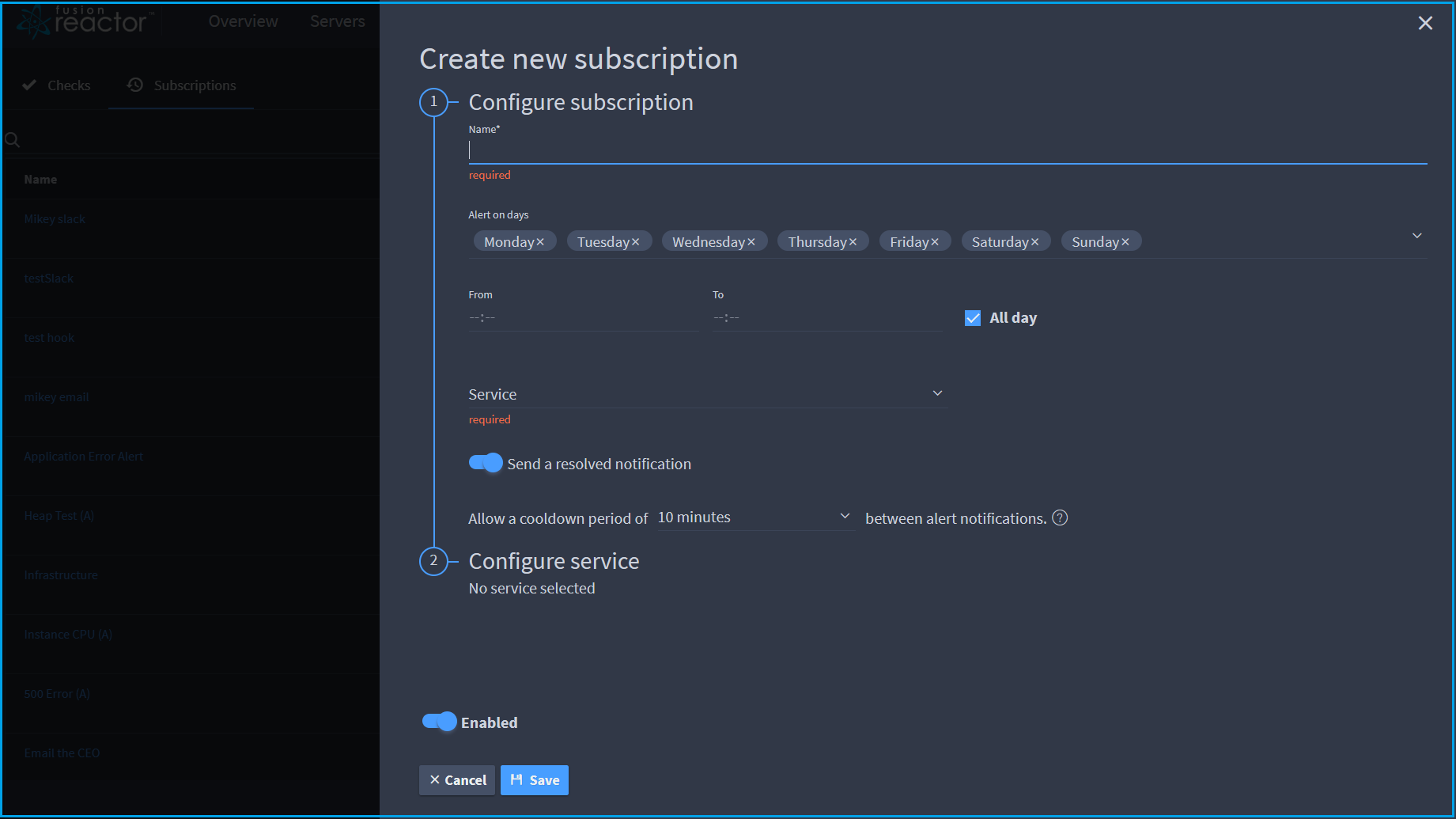

The Create new subscription screen is displayed:

!Screenshot

Within this form you will be able to set the active times and days of the subscription, as well as which alert states it watches for.

Messages will only be sent to the subscribed service of those conditions that are met by an alert. Each service has different properties that may be configured, and will be explained in more detail below.

Email

  • Subject is for the email subject, which is "FusionReactor alert" by default.
  • Addresses is where you list the email addresses of recipients for the subscription.
  • key and value fields let you enter internet/email message headers as key:value pairs.

Gitlab

Gitlab supports creating issues via email. Follow this guide to find out how.

Flowdock doesn't require any additional configuration beyond the service configuration.

HTTP Webhooks

  • Target URL is required, as it is the URL that the alerts will be sent to. Your endpoint should provide this URL that can be simply copied and pasted into the Target URL field.
  • Header is for the internet message headers attached to requests.
  • Body is for the body of the request.

The end-point of the webhook will vary on what it requires, so be sure to check the documentation of your endpoint to see what schema it follows. Then you can fill in the Body and Header to fit your needs.

Microsoft Teams

To set-up alerting for MS Teams, you will need to set up a Connector.

Learn more

Connectors

Once you have the URL, enter it into your subscription as the Target URL, as mentioned above for webhooks.

JSON schema used for MS Teams message cards

Example

Copy and paste this into the Body of the webhook, or create your own.

{
    "@type": "MessageCard",
    "@context": "https://schema.org/extensions",
    "summary": "FusionReactor Cloud Alert",
    "themeColor": "479eff",
    "sections": [
        {
            "activityTitle": "FusionReactor Cloud",
            "activitySubtitle" : "My alert title",
            "activityImage": "https://www.fusion-reactor.com/wp-content/uploads/2013/01/frico1.png",
            "text": "This text is here as a placeholder example of the webhook schema for MS Teams."
        }
    ],
    "potentialAction": [
        {
            "@type": "OpenUri",
            "name": "View alerts",
            "targets": [
                {
                    "os": "default",
                    "uri": "https://app.fusionreactor.io/alerting/alerts"
                }
            ]
        }
    ]
}

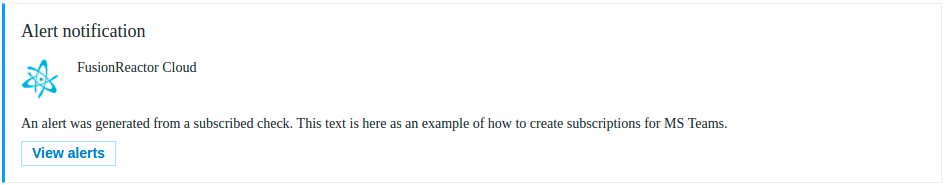

Resulting output:

!Screenshot

Learn more

Create message card.

Slack

For the FusionReactor Cloud Slack app:

  • Select Add to Slack which will redirect you to the Slack website.
  • If required, sign into Slack, and then select the channel you want alerts to appear in.
  • After, you will be redirected back to FusionReactor Cloud where you can continue to configure your subscription.

Edit and duplicate subscriptions

Clicking the Edit button on the row of the subscription you wish to edit will present you with an interface just like the one used to create subscriptions.

The values shown will match what's currently set on the subscription. Once you've made your desired changes, simply click Save and your changes will overwrite on the subscription.

If you don't wish to overwrite the existing subscription you can click Duplicate. The values shown will match what's currently set on the subscription you chose. You can changes before saving it.

Clicking Save at the end of the form, creates a new subscription.

Delete and disable subscriptions

Clicking Delete results in a message requesting confirmation that you wish to delete the subscription. Choosing Ok will delete the subscription from your account.

Warning

This cannot be undone.

Clicking the toggle under Enabled will enable or disable the subscription. The check will appear blue when enabled.

While disabled, checks will not send alerts to that subscription and the subscription will not appear when looking at a check in the detailed view.

If the alert service used by the subscription is not configured, or disabled, then the subscription will be automatically disabled and cannot be enabled until the service is configured and enabled.
